Regular spangle galvanized steel

Regular spangle galvanized steel is produced during the hot-dip galvanizing process using special techniques (such as adding alloying elements to the zinc bath or controlling the cooling rate) to inhibit the growth of zinc spangles, resulting in a uniform, fine coating surface without visible crystalline patterns. Compared with regular spangle galvanized steel, zero spangle galvanized steel has a smoother and flatter surface and better paint adhesion, making it particularly suitable for use as a substrate for color-coated sheets or in applications requiring high surface uniformity. During the hot-dip galvanizing process, we strictly control the process parameters to ensure a uniform coating with strong adhesion, and the coating does not peel off after processing such as bending and stamping. The product is available in coils or can be cut into sheets according to customer dimensions, offering flexible adaptation to various applications. Main end products: color-coated substrate, home appliance panels, automotive components, electronic chassis, precision stamped parts, interior architectural decorations, etc.

Email:vanessa@juhuasteel.com

Whatsapp:+86-15011637244

Category:

Regular spangle galvanized and Minimized Spangle Galvanized

Request Quote

Product Description

Processing Technology

Package & Transportation

Product Applications

Regular spangle galvanized steel Product Description

Material Grade		DX51D/DX53D/DC51D/DC53D/SGCE/SGCE
Thickness		0.25-3mm
Width		200-1500mm
Length		0.1m-3m, Support Customization
Weight		4-8 tons/ coil or as request
Zinc Layer		Hot Galvanizing: 40-80g/m²
Standard		AISI, ASTM, DIN, JIS, GB, JIS, SUS, etc.

CHEMICALCOMPOSITION (%)						TEMSILE TEST
Grade	C	Si	Mn	P	S	Yield Strength	Tensile Strength	Elongation
DX53D+Z	≤0.08	≤0.03	≤0.45	≤0.025	≤0.025	160~180 MPa	290~320 MPa	40~48%

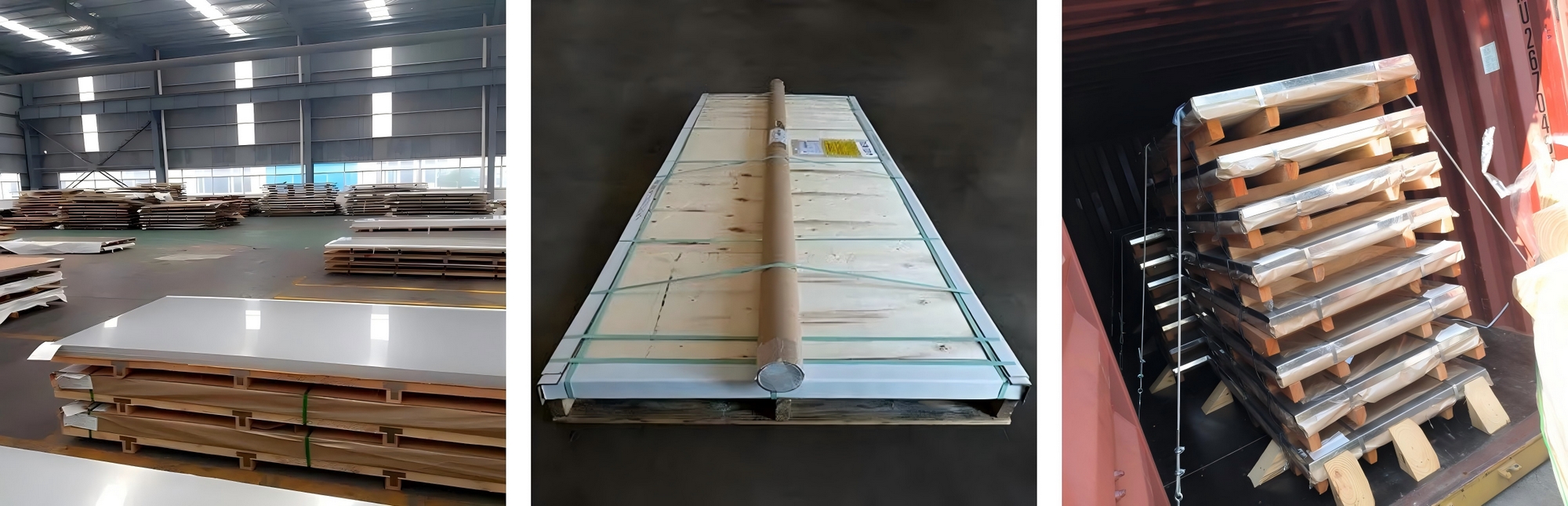

Package And Transportation

For Galvanized Sheet packaging: Standard packing for export with waterproof protection.

Other packaging can be customized according to customer requirements.

Port:Guangzhou port or Shenzhen port

Product Applications

Galvanized Sheet are widely used inSuitable for buildingmaterials, homeappliances, agriculture,furniture, automobiles.food packaging, stamping,deep drawing parts,etc.

镀锌

不锈钢

Product Applications

镀锌

Product Applications

Galvanized Sheet are widely used inSuitable for buildingmaterials, homeappliances, agriculture,furniture, automobiles.food packaging, stamping,deep drawing parts,etc.
